Reference Data

PreviousFlowNextPipelines

Last updated 7 months ago

Was this helpful?

To use a reference set from within a project, you have first to add it. From the project's page select Flow > Reference Data > Manage > +Add to project. Then select a reference set to add to your project. You can select the entire reference set, or click the arrow next to it to expand it. After expanding, scroll to the right, to see the individual reference files in the set. You can select individual reference files to add to your project, by checking the boxes next to them.

Note: Reference sets are only supported in Graphical CWL pipelines.

Copying Reference Data to other Regions

  1. Navigate to Reference Data (outside of Project context).

  2. Select the data set(s) you wish to add to another region and select Actions > Copy to another project.

  3. Select a project located in the region where you want to add your reference data.

  4. You can check in which region(s) Reference data is present by double-clicking on individual files in the Reference set and viewing Copy Details on the Data details tab.

  5. Allow a few minutes for new copies to become available before use.

Note: You only need one copy of each reference data set per region. Adding Reference Data sets to additional projects set in the same region does not result in extra copies, but creates links instead. This is done from inside the project at Projects > <your_project> > Flow > Reference Data > Manage > Add to project.

Creating a Pipeline with Reference Data

To create a pipeline with a reference data use the CWL - graphical mode (important restriction: as of now you cannot use reference data for pipelines created in advanced mode). Use the reference data icon instead of regular input icon. On the right hand side use the Reference files submenu to specify the name, the format, and the filters. You can specify the options for an end-user to choose from and a default selection. You can select more than 1 file, but you can only select 1 at a time (so, repeat process to select multiple reference files). If you only select 1 reference file, that file will be the only one users can use with your pipeline. In the screenshot a reference data with two options is presented.

If your pipeline was built to give users the option of choosing among multiple input reference files, they will see the option to select among the reference files you configured, under Settings.

After clicking the magnifying glass icon the user can select from provided options.

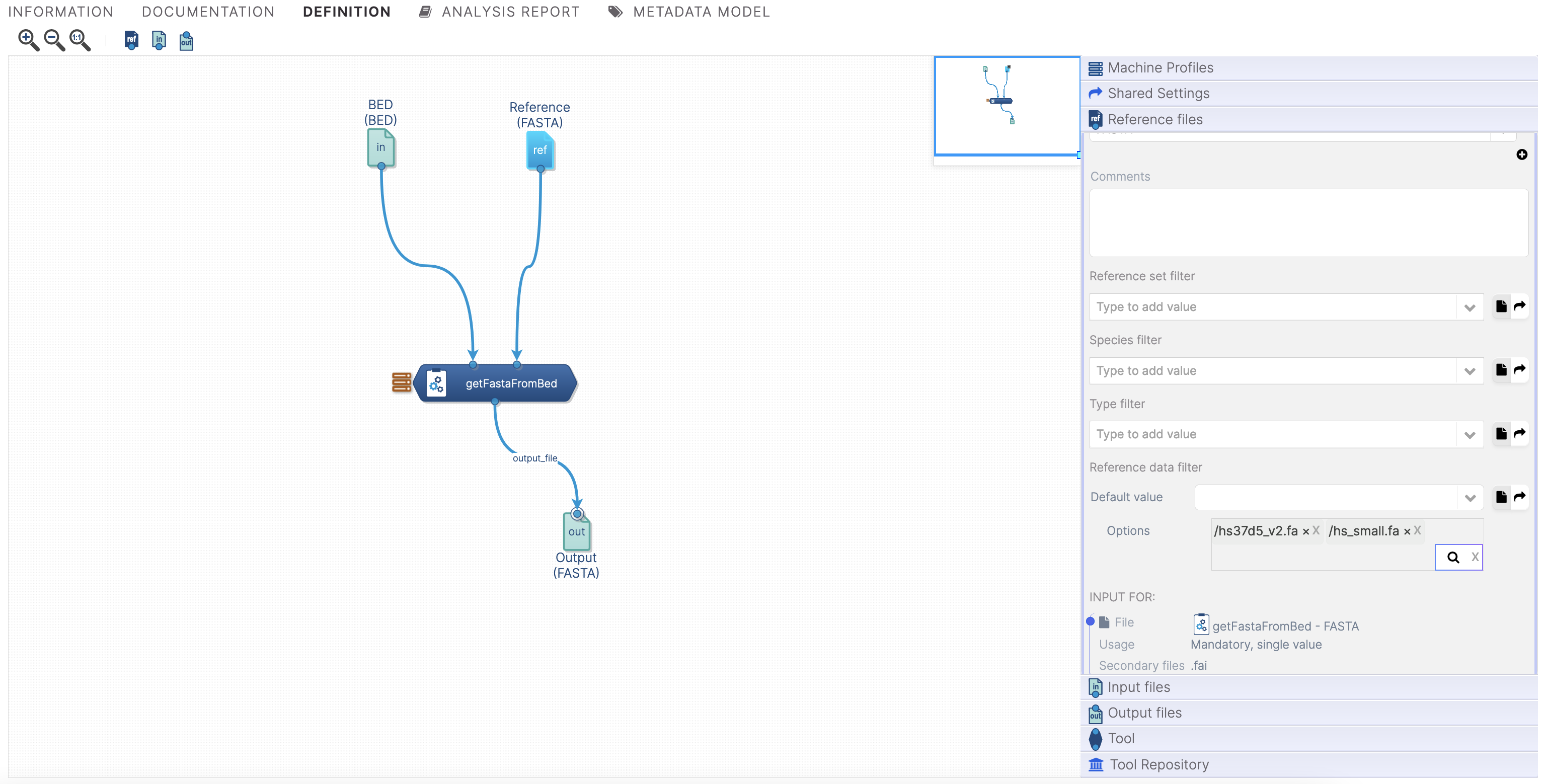

Two options for a reference file

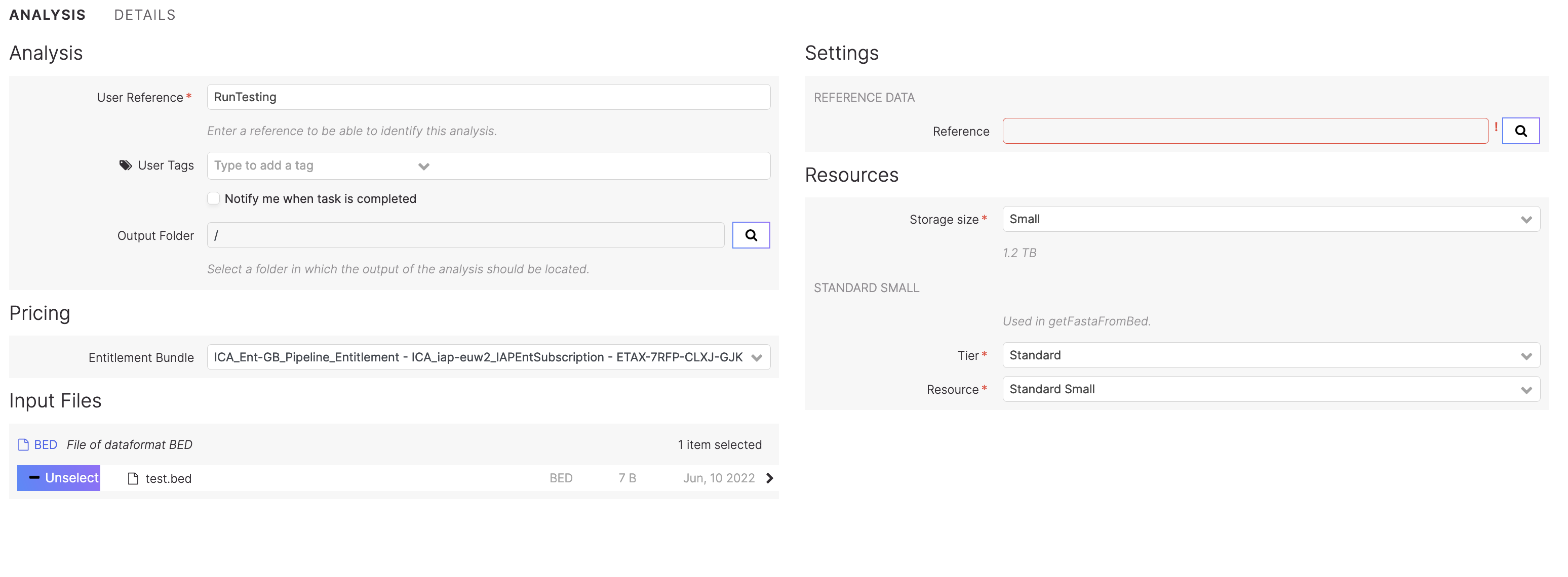

Required settings
Selections from the options
