Bundles are curated data sets which combine assets such as pipelines, tools, and Base query templates. This is where you will find packaged assets such as Illumina-provided pipelines and sample data. You can create, share and use bundles in projects of your own tenant as well as projects in other tenants.

The following ICA assets can be included in bundles:

• Data (link / unlink)

• Samples (link / unlink)

• Reference Data (add / delete)

• Pipelines (link/unlink)

• Tools and Tool images (link/unlink)

• Base tables (read-only) (link/unlink)

• Base query templates

• Bench docker images

The main Bundles screen has two tabs: My Bundles and Entitled Bundles. The My Bundles tab shows all the bundles that you are a member of. This tab is where most of your interactions with bundles occur. The Entitled Bundles tab shows the bundles that have been specially created by Illumina or other organizations and shared with you to use in your projects. See Access and Use an Entitled Bundle.

Linking an Existing Bundle to a Project

1. From the main navigation page, select Projects > your_project > Project Settings > Details.

2. Click the Edit button at the top of the Details page.

3. Click the + button, under Linked bundles.

4. Click on the desired bundle, then click the +Link Bundles button.

5. Click Save.

The assets included in the bundle will now be available in the respective pages within the Project (e.g. Data and Pipelines pages). Any updates to the assets will be automatically available in the destination project.

To unlink a bundle from a project,

1. Select Projects > your_project > Project Settings > Details.

2. Click the Edit button at the top of the Details page.

3. Click the (-) button, next to the linked bundle you wish to remove.

Create a New Bundle

To create a new bundle and configure its settings, do as follows.

1. From the main navigation, select Projects > your_project > Bundles.

2. Select + Create .

3. Enter a unique name for the bundle.

4. From the Region drop-down list, select where the assets for this bundle should be stored.

5. [Optional] Configure the following settings.

   • Categories—Select an existing category or enter a new one.

   • Status—Set the status of the bundle. When the status of a bundle changes, it cannot be reverted to a draft or released state.

     • Draft—The bundle can be edited.

     • Released—The bundle is released. Technically, you can still edit bundle information and add assets to the bundle, but should refrain from doing so.

     • Deprecated—The bundle is no longer intended for use. By default, deprecated bundles are hidden on the main Bundles screen (unless non-deprecated versions of the bundle exist). Select "Show deprecated bundles" to show all deprecated bundles. Bundles can not be recovered from deprecated status.

   • Short Description—Enter a description for the bundle.

   • Metadata Model—Select a metadata model to apply to the bundle.

6. Enter a release version for the bundle and optionally enter a description for the version.

7. [Optional] Links can be added with a display name (max 100 chars) and URL (max 2048 chars).

   • Homepage

   • License

   • Links

   • Publications

8. [Optional] Enter any information you would like to distribute with the bundle in the Documentation section.

9. Select Save.

Edit an Existing Bundle

To make changes to a bundle:

1. From the main navigation, select Bundles.

2. Select a bundle.

3. Select Edit.

4. Modify the bundle information and documentation as needed.

5. Select Save.

Adding Assets to a Bundle

To make changes to a bundle:

1. Select a bundle.

2. On the left-hand side, select the type of asset under Flow (such as pipeline or tool) you want to add to the bundle.

3. Depending on the asset type, select add or link to bundle.

4. Select the assets and confirm.

Assets must meet the following requirements before they can be added to a bundle:

• For Samples and Data, the project the asset belongs to must have data sharing enabled.

• The region of the project containing the asset must match the region of the bundle.

• You must have permission to access the project containing the asset.

• Pipelines and tools need to be in released status.

• Samples must be available in a complete state.

When you link folders to a bundle, a warning is displayed indicating that, depending on the size of the folder, linking may take considerable time. The linking process will run in the background and the progress can be monitored on the Bundles > your_bundle > activity > Batch Jobs screen. To see more details and the progress, double-click the batch job and then double-click the individual item. This will show how many individual files are already linked.

Which batch jobs are visible as activity depends on the user role.

Create a New Bundle Version

When creating a new bundle version, you can only add assets to the bundle. You cannot remove existing assets from a bundle when creating a new version. If you need to remove assets from a bundle, it is recommended that you create a new bundle. All users wich currently have access to a bundle will automatically have access to the new version as well.

1. From the main navigation, select Bundles.

2. Select a bundle.

3. Select + Create new Version.

4. Make updates as needed and update the version number.

5. Select Save.

When you create a new version of a bundle, it will replace the old version in your list. To see the old version, open your new bundle and look at Bundles > your_bundle > Details > Versioning. There you can open the previous version which is contained in your new version.

Assets such as data which were added in a previous version of your bundle will be marked in green, while new content will be black.

Add Terms of Use to a Bundle

1. From the main navigation, Select Bundles > your_bundle > Bundle Settings > Legal.

2. To add Terms of Use to a Bundle, do as follows:

   • Select + Create New Version.

   • Use the WYSIWYG editor to define Terms of Use for the selected bundle.

   • Click Save.

   • [Optional] Require acceptance by clicking the checkbox next to Acceptance required. Acceptance required will prompt a user to accept the Terms of Use before being able to use a bundle or add the bundle to a project.

3. To edit the Terms of Use, repeat Steps 1-3 and use a unique version name. If you select acceptance required, you can choose to keep the acceptance status as is or require users to reaccept the terms of use. When reacceptance is required, users need to reaccept the terms in order continue using this bundle in their pipelines. This is indicated when they want to enter projects which use this bundle.

Collaborating on a Bundle

If you want to collaborate with other people on creating a bundle and managing the assets in the bundle, you can add users to your bundle and set their permissions. You use this to create a bundle together, not to use the bundle in your projects.

1. From the main navigation, select Bundles > your_bundle > Bundle Settings > Team.

2. To invite a user to collaborate on the bundle, do as follows.

   • To add a user from your tenant, select Someone of your tenant and select a user from the drop-down list.

   • To add a user by their email address, select By email and enter their email address.

   • To add all the users of an entire workgroup, select Add workgroup and select a workgroup from the drop-down list.

   • Select the Bundle Role drop-down list and choose a role for the user or workgroup. This role defines the ability of the user or workgroup to view or edit bundle settings.

     • Viewer: view content without editing rights.

     • Contributor: view bundle content and link/unlink assets.

     • Administrator: full edit rights of content and configuration.

   • Repeat as needed to add more users.

   Users are not officially added to the bundle until they accept the invitation.

3. To change the permissions role for a user, select the Bundle Role drop-down list for the user and select a new role.

4. To revoke bundle permissions from a user, select the trash icon for the user.

5. Select Save Changes.

Sharing a Bundle

Once you have finalized your bundle and added all assets and legal requirements, you can share your bundle with other tenants to use it in their projects.

Your bundle must be in released status to prevent it from being updated while it is shared.

1. Go to Bundles > your_bundle > Edit > Details > Bundle status and set it to Released.

2. Save the change.

Once the bundle is released, you can share it. Invitations are sent to an individual email address, however access is granted and extended to all users and all workgroups inside that tenant.

1. Go to Bundles > your_bundle > Bundle Settings > Share.

2. Click Invite and enter the email address of the person you want to share the bundle with. They will receive an email from which they can accept or reject the invitation to use the bundle. The invitation will show the bundle name, description and owner. The link in the invite can only be used once.

You can follow up on the status of the invitation on the Bundles > your_bundle > Bundle Settings > Share page.

• If they reject the bundle, the rejection date will be shown. To re-invite that person again later on, select their email address in the list and choose Remove. You can then create a new invitation. If you do not remove the old entry before sending a new invitation, they will be unable to accept and get an error message stating that the user and bundle combination must be unique. They can also not re-use an invitation once it has been accepted or declined.

• If they accept the bundle, the acceptance date will be shown. They will in turn see the bundle under Bundles > Entitled bundles. To remove access, select their email address in the list and choose Remove.

Entitled Bundles

Entitled bundles are bundles created by Illumina or third parties for you to use in your projects. Entitled bundles can already be part of your tenant when it is part of your subscription. You can see your entitled bundles at Bundles > Entitled Bundles.

To use your shared entitled bundle, add the bundle to your project via Project Linking. Content shared via entitled bundles is read-only, so you cannot add or modify the contents of an entitled bundle. If you lose access to an entitled bundle previously shared with you, the bundle is unlinked and you will no longer be able to access its contents.

Software Registration

New users may reference the Illumina Connected Software Registration Guide for detailed guidance on setting up an account and registering a subscription.

Tenant Setup

The platform requires a provisioned tenant in the Illumina account management system with access to the Illumina Connected Analytics (ICA) application. Once a tenant has been provisioned, a tenant administrator will be assigned. The tenant administrator has permission to manage account access including add users, create workgroups, and add additional tenant administrators.

Each tenant is assigned a domain name used to login to the platform. The domain name is used in the login URL to navigate to the appropriate login page in a web browser. The login URL is https://<domain>.login.illumina.com, where <domain> is substituted with the domain name assigned to the tenant.

New user accounts can be created for a tenant by navigating to the domain login URL and following the links on the page to setup a new account with a valid email address. Once the account has been added to the domain, the tenant administrator may assign registered users to workgroups with permission to use the ICA application. Registered users may also be made workgroup administrators by tenant administrators or existing workgroup administrators.

For more details on identity and access management, please see the Illumina Connected Software help site.

API Keys

For security reasons, it is best practice to not use accounts with administrator level access to generate API keys and instead create a specific CLI user with basic permission. This will minimize the possible impact of compromised keys.

Generate an API Key

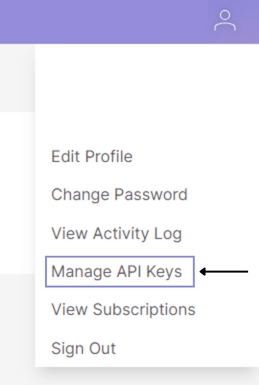

For long-lived credentials to the API, an API Key can be generated from the account console and used with the API and command-line interface. Each user is limited to 10 API Keys. API Keys are managed through the product dashboard after logging in through the domain login URL by navigating to the profile drop down and selecting "Manage API Keys".

Click the button to generate a new API Key. Provide a name for the API Key. Then choose to either include all workgroups or select the workgroups to be included. Selected workgroups will be accessible with the API Key.

Click to generate the API Key. The API Key is then presented (hidden) with a button to show the key to be copied and a link to download to a file to be stored securely for future reference. Once the window is closed, the key contents will not be accessible through the domain login page, so be sure to store it securely for future reference if needed.

After generating an API key, save the key somewhere secure to be referenced when using the command-line interface or APIs.

Access via Web UI

The web application provides a visual user interface (UI) for navigating resources in the platform, managing projects, and extended features beyond the API. To access the web application, navigate to the Illumina Connected Analytics portal.

• On the left, you have the navigation bar which will auto-collapse on smaller screens. When collapsed, use the ≡ symbol to expand it.

• The central part of the display is the item on which you are performing your actions.

• At the top right, you have icons to refresh the screen for information, status updates, and access to the online help.

Access via the CLI

The command-line interface offers a developer-oriented experience for interacting with the APIs to manage resources and launch analysis workflows. Find instructions for using the command-line interface including download links for your operating system in the CLI documentation.

Access via the API

The HTTP-based application programming interfaces (APIs) are listed in the API Reference section of the documentation. The reference documentation provides the ability to call APIs from the browser page and shows detailed information about the API schemas. HTTP client tooling such as Postman or cURL can be used to make direct calls to the API outside of the browser.

When accessing the API using the API Reference page or through REST client tools, the Authorization header must be provided with the value set to Bearer <token> where <token> is replaced with a valid JSON Web Token (JWT). For generating a JWT, see JSON Web Token (JWT).

Object Identifiers

The object data models for resources that are created in the platform include a unique id field for identifying the resource. These fixed machine-readable IDs are used for accessing and modifying the resource through the API or CLI, even if the resource name changes.

JSON Web Token (JWT)

Accessing the platform APIs requires authorizing calls using JSON Web Tokens (JWT). A JWT is a standardized trusted claim containing authentication context. This is a primary security mechanism to protect against unauthorized cross-account data access.

A JWT is generated by providing user credentials (API Key or username/password) to the token creation endpoint. Token creation can be performed using the API directly or the CLI.

Introduction

When looking at the main ICA navigation, you will see the following structure:

• Projects are your primary work locations which contain your data and tools to execute your analyses. Projects can be considered as a binder for your work and information. You can have data contained within a project, or you can choose to make it shareable between projects.

• Reference Data are reference genome sets which you use to help look for deviations and to compare your data against.

• Bundles are packages of assets such as sample data, pipelines, tools and templates which you can use as a curated data set. Bundles can be provided both by Illumina and other providers, and you can even create your own bundles. You will find the Illumina-provided pipelines in bundles.

• Audit/Event Logs are used for audit purposes and issue resolving.

• System Settings contain general information susch as the location of storage space, docker images and tool repositories.

Projects are the main dividers in ICA. They provide an access-controlled boundary for organizing and sharing resources created in the platform. The Projects view is used to manage projects within the current tenant.

Note that there is a combined limit of 30,000 projects and bundles per tenant.

Create new Project

To create a new project, click the Projects > + Create Project button.

Required fields include:

• Name

  • 1-255 characters

  • Must begin with a letter

  • Characters are limited to alphanumerics, hyphens, underscores, and spaces

• Analysis Priority (Low/Medium(default)/High) This is balanced per tenant with high priority analyses started first and the system progressing to the next lower priority once all higher priority analyses are running. Balance your priorities so that lower priority projects do not remain waiting for resources indefinitely.

• Project Owner Owner (and usually contact person) of the project. The project owner has the same rights as a project administrator, but can not be removed from a project without first assigning another project owner. This can be done by the current project owner, the tenant administrator or a project administrator of the current project. Reassignment is done at Projects > your_project > Project Settings > Team > Edit.

• Project Location Select your project location. Options available are based on Entitlement(s) associated with purchased subscription.

• Storage Bundle (auto-selected based on user selection of Project Location)

Click the Save button to finish creating the project. The project will be visible from the Projects view.

Create with Storage Configuration

During project creation, select the I want to manage my own storage checkbox to use a Storage Configuration as the data provider for the project.

With a storage configuration set, a project will have a 2-way sync with the external cloud storage provider: any data added directly to the external storage will be sync'ed into the ICA project data, and any data added to the project will be sync'ed into the external cloud storage.

Managing Projects

Several tools are available to assist you with keeping an overview of your projects. These filters work in both list and tile view and persist across sessions.

1. Searching is a case-insensitive wildcard filter. Any project which contains the characters will be shown. Use * as wildcard in searches. Be aware that operators without search words are blocked and will result in Unexpected error occurred when searching for projects. You can use the brackets, AND, OR and NOT operators, provided that you do not start the search with them (Monkey AND Banana is allowed, AND Aardvark by itself is invalid syntax)

2. Filter by Workgroup : Projects in ICA can be accessible for different workgroups. This drop-down list allows you to filter projects for specific workgroups. To reset the filter so it displays projects from all your workgroups, use the x on the right which appears when a workgroup is selected.

3. Hidden projects : You can hide projects (Projects > your_project > Details > Hide) which you no longer use. Hiding will delete data in base and bench and will thus be irreversible.

   • You can still see hidden projects if you select this option and delete the data they contain at Projects > your_project > Data to save on storage costs.

   • If you are using your own S3 bucket, your S3 storage will be unlinked from the project, but the data will remain in your S3 storage. Your S3 storage can then be used for other projects.
4. Favorites : By clicking on the star next to the project name in the tile view, you set a project as favourite. You can have multiple favourites and use the Favourites checkbox to only show those favourites. This prevents having too many projects visible.

5. Tile view shows a grid of projects. This view is best suited if you only have a few projects or have filtered them out by creating favourites. A single click will open the project.

6. List view shows a list of projects. This view allows you to add additional filters on name, description, location, user role, tenant, size and analyses. A double-click is required to open the project.

Externally-managed projects

Illumina software applications which do their own data management on ICA (such as BSSH) store their resources and data in a project much in the same was as manually created projects work in ICA. For ICA, these projects are considered to be externally-managed projects and from ICA, there are a number of restrictions on which actions are allowed on externally-managed projects. For example, you can not delete or move externally-managed data. This is to prevent inconsistencies when these applications want to access their own project data.

When you create a folder with a name which already exists as externally-managed folder, your project will have that folder twice. Once ICA-managed and once externally-managed as S3 does not require unique folder names.

Projects are indicated as externally-managed in the projects overview screen by a project card with a light grey accent and a lock symbol followed by "managed by app".

Tutorial

The event log shows an overview of system events with options to search and filter. For every entry, it lists the following:

• Event date and time

• Category (error, warn or info)

• Code

• Description

• Tenant

Up to 200,000 results will be be returned. If your desired records are outside the range of the returned records, please refine the filters or use the search function at the top right.

Export is restricted to the amount of entries shown per page. You can use the selector at the bottom to set this to up to 1000 entries per page.

You can use your own S3 bucket with Illumina Connected Analytics (ICA) for data storage. This section describes how to configure your AWS account to allow ICA to connect to an S3 bucket.

These instructions utilize the AWS CLI. Follow the AWS CLI documentation for instructions to download and install.

The AWS S3 bucket must exist in the same AWS region as the ICA project. Refer to the table below for a mapping of ICA project regions to AWS regions:

(*) BSSH is not currently deployed on the South Korea instance, resulting in limited functionality in this region with regard to sequencer integration.

You can enable SSE using an Amazon S3-managed key (SSE-S3). Instructions for using KMS-managed (SSE-KMS) keys are found here.

For Bring Your Own Storage buckets, all unversioned, versioned and suspended buckets are supported. If you connect buckets with object versioning, the data in ICA will be automatically synced with the data in objectstore.

Configure Bucket CORS Permission

ICA requires cross-origin resource sharing (CORS) permissions to write to the S3 bucket for uploads via the browser. Refer to the Configuring cross-origin resource sharing (CORS) (expand the "Using the S3 console" section) documentation for instructions on enabling CORS via the AWS Management Console. Use the following configuration during the process:

• In the cross-origin resource sharing (CORS) section, enter the following content.

  Copy

  [
      {
          "AllowedHeaders": [
              "*"
          ],
          "AllowedMethods": [
              "HEAD",
              "GET",
              "PUT",
              "POST",
              "DELETE"
          ],
          "AllowedOrigins": [
              "https://ica.illumina.com"
          ],
          "ExposeHeaders": [
              "ETag",
              "x-amz-meta-custom-header"
          ]
      }
  ]

Create AWS IAM Policy

ICA requires specific permissions to access data in an AWS S3 bucket. These permissions are contained in an AWS IAM Policy.

Refer to the Creating policies on the JSON tab documentation for instructions on creating an AWS IAM Policy via the AWS Management Console. Use the following configuration during the process:

• On Unversioned buckets, paste the JSON policy document below. Note the example below provides access to all objects prefixes in the bucket.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "s3:PutBucketNotification",
                "s3:ListBucket",
                "s3:GetBucketNotification",
                "s3:GetBucketLocation"
            ],
            "Resource": [
                "arn:aws:s3:::YOUR_BUCKET_NAME"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:GetObject",
                "s3:RestoreObject",
                "s3:DeleteObject"
            ],
            "Resource": "arn:aws:s3:::YOUR_BUCKET_NAME/YOUR_FOLDER_NAME/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "sts:GetFederationToken"
            ],
            "Resource": [
                "*"
            ]
        }
    ]
}

• On Versioned OR Suspended buckets, paste the JSON policy document below. Note the example below provides access to all objects prefixes in the bucket.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Effect": "Allow",
            "Action": [
                "s3:PutBucketNotification",
                "s3:ListBucket",
                "s3:GetBucketNotification",
                "s3:GetBucketLocation",
                "s3:ListBucketVersions",
                "s3:GetBucketVersioning"
            ],
            "Resource": [
                "arn:aws:s3:::YOUR_BUCKET_NAME"
            ]
        },
        {
            "Effect": "Allow",
            "Action": [
                "s3:PutObject",
                "s3:GetObject",
                "s3:RestoreObject",
                "s3:DeleteObject",
                "s3:DeleteObjectVersion",
                "s3:GetObjectVersion"
            ],
            "Resource": "arn:aws:s3:::YOUR_BUCKET_NAME/YOUR_FOLDER_NAME/*"
        },
        {
            "Effect": "Allow",
            "Action": [
                "sts:GetFederationToken"
            ],
            "Resource": [
                "*"
            ]
        }
    ]
}

• (Optional) Set policy name to "illumina-ica-admin-policy"

To create the IAM Policy via the AWS CLI, create a local file named illumina-ica-admin-policy.json containing the policy content above and run the following command. Be sure the path to the policy document (--policy-document) leads to the path where you saved the file:

aws iam create-policy --policy-name illumina-ica-admin-policy --policy-document file://illumina-ica-admin-policy.json

Create AWS IAM User

An AWS IAM User is needed to create an Access Key for ICA to connect to the AWS S3 Bucket. The policy will be attached to the IAM user to grant the user the necessary permissions.

Refer to the Creating IAM users (console) documentation for instructions on creating an AWS IAM User via the AWS Management Console. Use the following configuration during the process:

• (optional) Set user name to "illumina_ica_admin"

• Select the Programmatic access option for the type of access

• Select Attach existing policies directly when setting the permissions, and choose the policy created in Create AWS IAM Policy

• (Optional) Retrieve the Access Key ID and Secret Access Key by choosing to Download .csv

To create the IAM user and attach the policy via the AWS CLI, enter the following command (AWS IAM users are global resources and do not require a region to be specified). This command creates an IAM user illumina_ica_admin, retrieves your AWS account number, and then attaches the policy to the user.

aws iam create-user --user-name illumina_ica_admin
ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
aws iam attach-user-policy --policy-arn arn:aws:iam::${ACCOUNT_ID}:policy/illumina-ica-admin-policy --user-name illumina_ica_admin

Create AWS Access Key

If the Access Key information was retrieved during the IAM user creation, skip this step.

Refer to the Managing access keys (console) AWS documentation for instructions on creating an AWS Access Key via the AWS Console. See the "To create, modify, or delete another IAM user's access keys (console)" sub-section.

Use the command below to create the Access Key for the illumina_ica_admin IAM user. Note the SecretAccessKey is sensitive and should be stored securely. The access key is only displayed when this command is executed and cannot be recovered. A new access key must be created if it is lost.

aws iam create-access-key --user-name illumina_ica_admin

    "AccessKey": {
        "UserName": "illumina_ica_admin",
        "AccessKeyId": "<access key id>",
        "Status": "Active",
        "SecretAccessKey": "<secret access key>",
        "CreateDate": "2020-10-22 09:42:24+00:00"
    }

The AccessKeyId and SecretAccessKey values will be provided to ICA in the next step.

S3 Bucket Policy

Connecting your S3 bucket to ICA does not require any additional bucket policies.

However, if a bucket policy is required for use cases beyond ICA, you need to ensure that the bucket policy supports the essential permissions needed by ICA without inadvertently restricting its functionality.

Here is one such example:

{
     "Version": "2012-10-17",
     "Statement": [
         {
             "Effect": "Deny",
             "Principal": {
                 "AWS": "*"
             },
             "Action": [
                 "s3:PutObject",
                 "s3:GetObject",
                 "s3:RestoreObject",
                 "s3:DeleteObject",
                 "s3:DeleteObjectVersion",
                 "s3:GetObjectVersion"
             ],
             "Resource": "arn:aws:s3:::YOUR_BUCKET_NAME/*",
             "Condition": {
                 "ArnNotLike": {
                     "aws:PrincipalArn": [
                         "arn:aws:iam::YOUR_ACCOUNT_ID:user/YOUR_IAM_USER",
                         "arn:aws:sts::YOUR_ACCOUNT_ID:federated-user/*"
                     ]
                 }
             }
         }
     ]
 }

In this example, we have a restriction enabled on the bucket policy to disallow any kind of access to the bucket. However, there is an exception rule added for the IAM user that ICA is using to connect to the S3 bucket. The exception rule is allowing ICA to perform the above S3 action permissions necessary for ICA functionalities.

Additionally, the exception rule is applied to the STS federated user session principal associated with ICA. Since ICA leverages the AWS STS to provide temporary credentials that allow users to perform actions on the S3 bucket, it is crucial to include these STS federated user session principals in your policy's whitelist. Failing to do so could result in 403 Forbidden errors when users attempt to interact with the bucket's objects using the provided temporary credentials.

Create ICA Storage Credential

To connect your S3 account to ICA, you need to add a storage credential in ICA containing the Access Key ID and Access Key created in the previous step. From the ICA home screen, navigate to System Settings > Credentials and click the Create button to create a new storage credential.

Provide a name for the storage credentials, ensure the type is set to "AWS user" and provide the Access Key ID and Secret Access Key.

With the secret credentials created, a storage configuration can be created using the secret credential. Refer to the instructions to Create a Storage Configuration for details.

Enabling Cross Account Access for Copy and Move Operations

ICA uses AssumeRole to copy and move objects from a bucket in an AWS account to another bucket in another AWS account. To allow cross account access to a bucket, the following policy statements must be added in the bucket policy:

    {
        "Version": "2012-10-17",
        "Statement": [
            {
                "Sid": "Allow cross account access",
                "Effect": "Allow",
                "Principal": {
                    "AWS": "ASSUME_ROLE_ARN"
                },
                "Action": [
                    "s3:PutObject",
                    "s3:DeleteObject",
                    "s3:ListMultipartUploadParts",
                    "s3:AbortMultipartUpload",
                    "s3:GetObject"
                ],
                "Resource": [
                    "arn:aws:s3:::YOUR_BUCKET_NAME",
                    "arn:aws:s3:::YOUR_BUCKET_NAME/*"
                ]
            }
        ]
    }

The ARN of the cross account role you want to give permission to is specified in the Principal. Refer to the table below to determine which region-specific Role ARN should be used.

Storage Configuration Troubleshooting Guide

The following are common issues encountered when connecting an AWS S3 bucket through a storage configuration

Conflicting bucket notifications

This error occurs when an existing bucket notification's event information overlap with the notifications ICA is trying to add. Amazon S3 event notification only allows overlapping events with non-overlapping prefix. Depending on the conflicts on the notifications, the error can be presented in any of the following:

Volume Configuration cannot be provisioned: storage container is already set up for customer's own notification

Invalid parameters for volume configuration: found conflicting storage container notifications with overlapping prefixes

Failed to update bucket policy: Configurations overlap. Configurations on the same bucket cannot share a common event type

To fix the issue:

1. In the Amazon S3 Console, review your current S3 bucket's notification configuration and look for prefixes that overlaps with your Storage Configuration's key prefix

2. Delete the existing notification that overlaps with your Storage Configuration's key prefix

3. ICA will perform a series of steps in the background to re-verify the connection to your bucket.

GetTemporaryUploadCredentialsAsync failure

This error can occur when recreating a recently deleted storage configuration. To fix the issue, you have to delete the bucket notifications:

1. In the Amazon S3 Console select the bucket for which you need to delete the notifications from the list.

2. Choose properties

3. Navigate to the Event Notifications section and choose the check box for the event notifications with name gds:objectcreated, gds:objectremoved and gds:objectrestore and click Delete.

4. Wait 15 minutes for the storage to become available in ICA

If you do not want to wait 15 minutes, you can delete the current storage configuration, delete the bucket notifications in the bucket and create a new storage configuration.

Illumina Connected Analytics allows you to create and assign metadata to capture additional information about samples.

Each tenant has one root metadata model that is accessible to all projects in the tenant. This allows an organization to collect the same piece of information for every sample in every project in the tenant, such as an ID number. Within this root model, you can configure multiple metadata submodels, even at different levels.

Illumina recommends that you limit the amount of fields or field groups you add to the root model. If there are any misconfigured items in the root model, it will carry over into all other metadata models in the tenant. Once a root model is published, the fields and groups that are defined within it cannot be deleted. You should first consider creating submodels before adding anything to the root model. When configuring a project, you have the option to assign one published metadata model for all samples in the project. This metadata model can be the root model, a submodel of the root model, or a submodel of a submodel. It can be any published metadata model in the tenant. When a metadata model is selected for a project, all fields configured for the metadata model, and all fields in any parent models are applied to the samples in the project.

❗️ Illumina recommends that you limit the amount of fields or field groups you add to the root model. You should first consider creating submodels before adding anything to the root model.

Metadata concepts

The following terminology is used within this page:

• Metadata fields = Metadata fields will be linked to a sample in the context of a project. They can be of various types and could contain single or multiple values.

• Metadata groups = You can identify that a few fields belong together (for example, they all are related to quality metrics). That would be the moment to create a group so that the user knows these fields belong together

• Root model = Model that is linked to the tenant. Every metadata model that you link to a project will also contain the fields and groups specified in this model as this is a parent model for all other models. This is a subcategory of a project metadata model

• Child/Sub model = Any metadata model that is not the root model. Child models will inherit all fields and groups from their parent models. This is a subcategory of a project metadata model

• Pipeline model = Model that is linked to a specific pipeline and not a project

Metadata in the context of ICA will always give information about a sample. It can be provided by the user, the pipeline and via the API. There are 2 general categories of metadata models: Project Metadata Model and Pipeline Metadata Model. Both models are built from metadata fields and groups. The project metadata model is specific per tenant, while the pipeline metadata model is linked to a pipeline and can be shared across tenants. These models are defined by users.

Each sample can have multiple metadata models. Whenever you link a project metadata model to your project, you will see its groups and fields present on each sample. The root model from that tenant will also be present as every metadata model inherits the groups and fields specified in the parent metadata model(s). When a pipeline is executed with sample and the pipeline contained a metadata model, the groups and fields will be present as well for each analysis that comes out of a pipeline execution.

Groups & fields

The following field types are used within ICA:

• Text: Free text

• Keyword: Automatically complete value based on already used values

• Numeric: Only numbers

• Boolean: True or false, cannot be multiple value

• Date: e.g. 23/02/2022

• Date time: e.g. 23/02/2022 11:43:53, saved in UTC

• Enumeration: select value out of drop-down list

The following properties can be selected for groups & fields:

• Required: Pipeline can’t be started with this sample until the required group/field is filled in

• Sensitive: Values of this group/field are only visible to project users of the own tenant. When a sample is shared across tenants, these fields won't be visible

• Filled by pipeline: Fields that need to be filled by pipeline should be part of the same group. This group will automatically be multiple value and values will be available after pipeline execution. This property is only available for groups

• Multiple value: This group/field can consist out of multiple (grouped) values

❗️ Fields cannot be both required and filled by pipeline

Project vs. Pipeline Metadata Models

Project metadata model has metadata linked to a specific project. Values are known upront, general information is required for each sample of a specific project, and it may include general mandatory company information.

Pipeline metadata model has metadata linked to a specific pipeline. Values are populated during the pipeline execution and it requires an output file with the name 'metadata.response.json'.

❗️ Field groups should be used when configuring metadata fields that are filled by a pipeline. These fields should be part of the same field group and be configured with the Multiple Value setting enabled

Metadata Actions

Publish a Metadata Model

Newly created and updated metadata models are not available for use within the tenant until the metadata model is published. When a metadata model is published, fields and field groups cannot be deleted, but the names and descriptions for fields and field groups can be edited. A model can be published after verifying all parent models are published first.

Retire a Metadata Model

If a published metadata model is no longer needed, you can retire the model (except the root model).

1. First, check if the model contains any submodels. A model cannot be retired if it contains any published submodels.

2. When you are certain you want to retire a model and all submodels are retired, click on the three dots in the top right of the model window, and then select Retire Metadata Model.

Assign a Metadata Model to a Project

To add metadata to your samples, you first need to assign a metadata model to your project.

1. Go to Projects > your_project > Project Settings > Details.

2. Select Edit.

3. From the Metadata Model drop-down list, select the metadata model you want to use for the project.

4. Select Save. All fields configured for the metadata model, and all fields in any parent models are applied to the samples in the project.

Add Metadata to Samples Manually

To manually add metadata to samples in your project, do as follows.

1. Precondition is that you have a metadata model assigned to your project

2. Go to Projects > your_project > Samples > your_sample.

3. Double-click your sample to open the sample details.

4. Enter all metadata information as it applies to the selected sample. All required metadata fields must be populated or the pipeline cannot start.

5. Select Save

Populating a Pipeline Metadata Model

To fill metadata by pipeline executions, a pipeline model must be created.

1. In the Illumina Connected Analytics main navigation, go to Projects > your_project > Flow > Pipelines > your_pipeline.

2. Double-click on your pipeline to open the pipeline details.

3. Create/Edit your model under Metadata Model tab. Field groups should be used when configuring metadata fields that are filled by a pipeline. These fields should be part of the same field group and be configured with the Multiple Value setting enabled.

In order for your pipeline to fill the metadata model, an output file with the name metadata.response.json must be generated. After adding your group fields to the pipeline model, click on Generate example JSON to view the required format for your pipeline.

❗️ The field names cannot have . in them, e.g. for the metric name Q30 bases (excl. dup & clipped bases) the . after excl must be removed.

Pushing Metadata Metrics to Base

Populating metadata models of samples allows having a sample-centric view of all the metadata. It is also possible to synchronize that data into your project's Base warehouse.

1. In the Illumina Connected Analytics main navigation, select Projects.

2. In your project menu select Schedule.

3. Select 'Add new', and then click on the Metadata Schedule option.

4. Type a name for your schedule, optionally add description, and select whether you would like the metadata source would be the current project or the entire tenant. It is also possible to select whether ICA references would be anonymized and if sensitive metadata fields would be included. As a reminder, values of sensitive metadata fields would not be visible to other users outside of the project.

5. Select Save.

6. Navigate to Tables under BASE menu in your project.

7. Two new table schemas should be added with your current metadata models.

In order to create a Tool or Bench image, a Docker image is required to run the application in a containerized environment. Illumina Connected Analytics supports both public Docker images and private Docker images uploaded to ICA.

Importing a Public External Image (Tools)

1. Navigate to System Settings > Docker Repository.

2. Click Create > External image to add a new external image.

3. Add your full image URL in the Url field, e.g. docker.io/alpine:latest or registry.hub.docker.com/library/alpine:latest. Docker Name and Version will auto-populate. (Tip: do not add http:// or https:// in your URL)

Note: Do not use :latest when the repository has rate limiting enabled as this interferes with caching and incurs additional data transfer.

1. (Optional) Complete the Description field.

2. Click Save.

3. The newly added image will appear in your Docker Repository list.

Verification of the URL is performed during execution of a pipeline which depends on the Docker image, not during configuration.

External images are accessed from the external source whenever required and not stored in ICA. Therefore, it is important not to move or delete the external source. There is no status displayed on external Docker repositories in the overview as ICA cannot guarantee their availability. The use of :stable instead of :latest is recommended.

Importing a Private Image (Tools + Bench Images)

In order to use private images in your tool, you must first upload them as a TAR file.

1. Navigate to Projects > your_project .

3. Select your uploaded TAR file and click in the top menu on Manage > Change Format .

5. Navigate to System Settings > Docker Repository (outside of your project).

6. Click on Create > Image.

7. Click on the magnifying glass to find your uploaded TAR image file.

8. Select the appropriate region and if needed, filter on project from the drop-down menus to find your file.

9. Select that file.

11. The newly added image should appear in your Docker Repository list. Verify it is marked as Available under the Status column to ensure it is ready to be used in your tool or pipeline.

Copying Docker Images to other Regions

1. Navigate to System Settings > Docker Repository.

2. Either

   • Select the required image(s) and go to Manage > Add Region.

   • OR double-click on a required image, check the box matching the region you want to add, and select update.

3. In both cases, allow a few minutes for the image to become available in the new region (the status becomes available in table view).

To remove regions, go to Manage > Remove Region or unselect the regions from the Docker image detail view.

Downloading Docker Images

You can download your created Docker images at System Settings > Docker Images > your_Docker_image > Manage > Download.

In order to be able to download Docker images, the following requirements must be met:

• The Docker image can not be from an entitled bundle.

• Only self-created Docker images can be downloaded.

• The Docker image must be an internal image and in status Available.

• You can only select a single Docker image at a time for download.

File Size Considerations

Docker image size should be kept as small as practically possible. To this end, it is best practice to compress the image. After compressing and uploading the image, select your uploaded file and click Manage > Change Format in the top menu to change it to Docker format so ICA can recognize the file.

The Activity view shows the status and history of long-running activities including Data Transfers, Base Jobs, Base Activity, Bench Activity and Batch Jobs.

Data Transfers

The Data Transfers tab shows the status of data uploads and downloads. You can sort, search and filter on various criteria and export the information. Show ongoing transfers (top right) allows you to filter out the completed and failed transfers to focus on current activity.

Base Jobs

The Base Jobs tab gives an overview of all the actions related to a table or a query that have run or are running (e.g., Copy table, export table, Select * from table, etc.)

The jobs are shown with their:

• Creation time: When did the job start

• Description: The query or the performed action with some extra information

• Type: Which action was taken

• Status: Failed or succeeded

• Duration: How long the job took

• Billed bytes: The used bytes that need to be paid for

Failed jobs provide information on why the job failed. Details are accessed by double-clicking the failed job. Jobs in progress can be aborted here.

Base Activity

The Base Activity tab gives an overview of previous results (e.g., Executed query, Succeeded Exporting table, Created table, etc.) Collecting this information can take considerable time. For performance reasons, only the activity of the last month (rolling window) with a limit of 1000 records is shown and available for download as Excel or JSON. To get the data for the last year without limit on the number of records, use the export as file function. No activity data is retained for more than one year.

The activities are shown with:

• Start Time: The moment the action was started

• Query: The SQL expression.

• Status: Failed or succeeded

• Duration: How long the job took

• User: The user that requested the action

• Size: For SELECT queries, the size of the query results is shown. Queries resulting in less than 100Kb of data will be shown with a size of <100K

Bench Activity

The Bench Activity tab shows the actions taken on Bench Workspaces in the project.

The activities are shown with:

• Workspace: Workspace where the activity took place

• Date: Date and time of the activity

• User: User who performed the activity

• Action: Which activity was performed

Batch Jobs

The Batch Jobs tab allows users to monitor progress of Batch Jobs in the project. It lists Data Downloads, Sample Creation (double-click entries for details) and Data Linking (double-click entries for details). The (ongoing) Batch Job details are updated each time they are (re)opened, or when the refresh button is selected at the bottom of the details screen. Batch jobs which have a final state such as Failed or Succeeded are removed from the activity list after 7 days.

Which batch jobs are visible depends on the user role.

A storage configuration provides ICA with information to connect to an external cloud storage provider, such as AWS S3. The storage configuration validates that the information provided is correct, and then continuously monitors the integration.

Refer to the following pages for instructions to setup supported external cloud storage providers:

Credentials

The storage configuration requires credentials to connect to your storage. AWS uses the security credentials to authenticate and authorize your requests. On the System Settings > Credentials > Create, you can enter these credentials. Long-term access keys consist of a combination of the access key ID and secret access key as a set.

Fill out the following fields:

• Type—The type of access credentials. This will usually be AWS user.

• Name—Provide a name to easily identify your access key.

• Access key ID—The access key you created.

• Secret access key—Your related secret access key.

Create a Storage Configuration

1. In the ICA main navigation, select System Settings > Storage > Create.

2. Configure the following settings for the storage configuration.

   • Type—Use the default value, eg, AWS_S3. Do not change.

   • Region—Select the region where the bucket is located.

   • Configuration name—You will use this name when creating volumes that reside in the bucket. The name length must be in between 3 and 63 characters.

   • Description—Here you can provide a description for yourself or other users to identify this storage configuration.

   • Bucket name—Enter the name of your S3 bucket.

   • Key prefix [Optional]—You can provide a key prefix to allow only files inside the prefix to be accessible. The key prefix must end with "/".

   • If a key prefix is specified, your projects will only have access to that folder and subfolders. For example, using the key prefix folder-1/ ensures that only the data from the folder-1 directory in your S3 bucket is synced with your ICA project. Using prefixes and distinct folders for each ICA project is the recommended configuration as it allows you to use the same S3 bucket for different projects.

   • Using no key prefix results in syncing all data in your S3 bucket (starting from root level) with your ICA project. Your project will have access to your entire S3 bucket, which prevents that S3 bucket from being used for other ICA projects. Although possible, this configuration is not recommended.

   • Secret—Select the credentials to associate with this storage configuration. These were created on the Credentials tab.

   • Server Side Encryption [Optional]—If needed, you can enter the algorithm and key name for server-side encryption processes.

3. Select Save.

With the action Set as default for region, you select which storage will be used as default storage in a region for new projects of your tenant. Only one storage can be default at a time for a region, so selecting a new storage as default will unselect the previous default. If you do not want to have a default, you can select the default storage and the action will become Unset as default for region.

The System Settings > Credentials > Share action is used to make the storage available to everyone in your tenant. By default, storage is private per user so that you have complete control over the contents. Once you decide you want to share the storage, simply select it and use the Share action. Do take into account that once shared, you can not unshare the storage. Once your storage is used in a project, it can also no longer be deleted.

Storage Configuration Verification

Every 4 hours, ICA will verify the storage configuration and credentials to ensure availability. When an error is detected, ICA will attempt to reconnect once every 15 minutes. After 200 consecutively failed connection attempts (50 hours), ICA will stop trying to connect.

When you update your credentials, the storage configuration is automatically validated. In addition, you can manually trigger revalidation when ICA has stopped trying to connect by selecting the storage and then clicking Validate on the System Settings > Storage > Manage.

Supported Storage Classes

Illumina® Connected Analytics is a cloud-based software platform intended to be used to manage, analyze, and interpret large volumes of multi-omics data in a secure, scalable, and flexible environment. The versatility of the system allows the platform to be used for a broad range of applications. When using the applications provided on the platform for diagnostic purposes, it is the responsibility of the user to determine regulatory requirements and to validate for intended use, as appropriate.

The platform is hosted in regions listed below.

The platform hosts a suite of RESTful HTTP-based application programming interfaces (APIs) to perform operations on data and analysis resources. A web application user-interface is hosted alongside the API to deliver an interactive visualization of the resources and enables additional functionality beyond automated analysis and data transfer. Storage and compute costs are presented via usage information in the account console, and a variety of compute resource options are specifiable for applications to fine tune efficiency.

Getting Started

Getting Help

Use the search bar on the top right to navigate through the help docs and find specific topics of interest.

If you have any questions, contact Illumina Technical Support by phone or email:

Illumina Technical Support | techsupport@illumina.com | 1-800-809-4566

For customers outside the United States, Illumina regional Technical Support contact information can be found at www.illumina.com/company/contact-us.html.

To see the current ICA version you are logged in to, click your username found on the top right of the screen and then select About.

Other Illumina Products

To view a list of the products to which you have access, select the 9 dots symbol at the top right of ICA. This will list your products. If you have multiple regional applications for the same product, the region of each is shown between brackets.

The More Tools category presents the following options

• My Illumina Dashboard to monitor instruments, streamline purchases and keep track of upcoming activities.

• Link to the Support Center for additional information and help.

• Link to the order management from where you can keep track of your current and past orders.

Release Notes

You can use samples to group information related to a sample, including input files, output files, and analyses.

You can search for samples (excluding their metadata) with the Search button at the top right.

Add New Sample

To add a new sample, do as follows.

1. Select Projects > your_project > Samples.

2. To add a new sample, select + Create, and then enter a unique name and description for the sample.

3. To include files related to the sample, select + Add data to sample.

Your sample is added to the Samples page. To view information on the sample, select the sample, and then select Open Details.

Add Files to Samples

You can add additional files to a sample after creating the sample. Any files that are not currently included in a sample are listed on the Unlinked Files tab.

To add an unlinked file to a sample, do as follows.

1. Go to Projects > your_project > Samples > Unlinked files tab.

2. Select a file or files, and then select one of the following options:

   • Create sample — Create a new sample that includes the selected files.

   • Link to sample — Select an existing sample in the project to link the file to.

Alternatively, you can add unlinked files from the sample details.

1. Going to Projects > your_project > Samples > your_sample.

2. Select your sample to open the details.

3. The last section of the details is files, where you select + Add data to sample.

4. If the data is not in your project, select Choose a file, which will upload the data to your project. This does not automatically add it to your sample, you will still have to select that newly uploaded data and then select add data to sample.

Data can only be linked to a single sample, so once you have linked data to a sample, it will no longer appear in the list of data to choose form.

Removing Files from Samples

To remove files from samples,

1. Go to Projects > your_project > Samples > your_sample > Details.

2. Go to the files section and open the file details of the file you want to remove.

3. Select Remove data from sample.

4. Save your changes.

Link Samples to Project

A Sample can be linked to a project from a separate project to make it available in read-only capacity.

1. Navigate to the Samples view in the Project

2. Click the Link button

3. Select the Sample(s) to link to the project

4. Click the Link button

Data linked to Samples is not automatically linked to the project. The data must be linked separately from the Data view. Samples also must be available in a complete state in order to be linked.

Delete Samples

If you want to remove a sample, select it and use the delete option from the top navigation row. You will be presented a choice of how to handle the data in the sample.

• Unlink all data without deleting it.

• Delete input data and unlink other data.

• Delete all data.

You can verify the integrity of the data with the MD5 (Message Digest Algorithm 5) checksum. It is a widely used cryptographic hash function that generates a fixed-size, 128-bit hash value from any input data. This hash value is unique to the content of the data, meaning even a slight change in the data will result in a significantly different MD5 checksum.

For files smaller than 16 MB, you can directly retrieve the MD5 checksum using our API endpoints. Make an API GET call to the https://ica.illumina.com/ica/rest/api/projects/{projectId}/data/{dataId} endpoint specifying the data Id you want to check and the corresponding project ID. The response you receive will be in JSON format, containing various file metadata. Within the JSON response, look for the objectETag field. This value is the MD5 checksum for the file you have queried. You can compare this checksum with the one you compute locally ot ensure the file's integrity.

For larger files, the process is different due to computation limitations. In these cases, we recommend using a dedicated pipeline on our platform to explicitly calculate the MD5 checksum. Below you can find both a main.nf file and the corresponding XML for a possible Nextflow pipeline to calculate the MD5 checksum for FASTQ files.

nextflow.enable.dsl = 2


process md5sum {

    container "public.ecr.aws/lts/ubuntu:22.04"
    pod annotation: 'scheduler.illumina.com/presetSize', value: 'standard-small'

    input:
        file txt

    output:
        stdout emit: result
        path '*', emit: output

    publishDir "out", mode: 'symlink'

    script:
        txt_file_name = txt.getName()
        id = txt_file_name.takeWhile { it != '.'}

        """
        set -ex
        echo "File: $txt_file_name"
        echo "Sample: $id"
        md5sum ${txt} > ${id}_md5.txt
        """
    }

workflow {
    txt_ch = Channel.fromPath(params.in)
    txt_ch.view()
    md5sum(txt_ch).result.view()
}

<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<pd:pipeline xmlns:pd="xsd://www.illumina.com/ica/cp/pipelinedefinition">
    <pd:dataInputs>
        <pd:dataInput code="in" format="FASTQ" type="FILE" required="true" multiValue="true">
            <pd:label>Input</pd:label>
            <pd:description>FASTQ files input</pd:description>
        </pd:dataInput>
    </pd:dataInputs>
    <pd:steps/>
</pd:pipeline>

A Tool is the definition of a containerized application with defined inputs, outputs, and execution environment details including compute resources required, environment variables, command line arguments, and more.

Create a Tool

Tools define the inputs, parameters, and outputs for the analysis. Tools are available for use in graphical CWL pipelines by any project in the account.

1. Select System Settings > Tool Repository > + Create.

2. Configure tool settings in the tool properties tabs. See Tool Properties.

3. Select Save.

Tool Properties

The following sections describe the tool properties that can be configured in each tab.

Refer to the CWL CommandLineTool Specification for further explanation about many of the properties described below. Not all features described in the specification are supported.

Information Tab

Tool Status

The release status of the tool. can be one of "Draft", "Release Candidate", "Released" or "Deprecated".

Documentation Tab

The Documentation tab provides options for configuring the HTML description for the tool. The description appears in the Tool Repository but is excluded from exported CWL definitions.

General Tool Tab

The General Tool tab provides options to configure the basic command line.

The Hints/Requirements include CWL features to indicate capabilities expected in the Tool's execution environment.

• Inline Javascript

  • The Tool contains a property with a JavaScript expression to resolve it's value.

• Initial workdir

  • The workdir can be any of the following types:

    • String or Expression — A string or JavaScript expression, eg, $(inputs.InputFASTA)

    • File or Dir — A map of one or more files or directories, in the following format: {type: array, items: [File, Directory]}

    • Dirent — A script in the working directory. The Entry name field specifies the file name.

• Scatter feature — Indicates that the workflow platform must support the scatter and scatterMethod fields.

Tool Arguments Tab

The Tool Arguments tab provides options to configure base command parameters that do not require user input.

Tool arguments may be one of two types:

• String or Expression — A literal string or JavaScript expression, eg --format=bam.

• Binding — An argument constructed from the binding of an input parameter.

The following table describes the argument input fields.

Example

Tool Inputs Tab

The Tool Inputs tab provides options to define the input files and directories for the tool. The following table describes the input and binding fields. Selecting multi value enables type binding options for adding prefixes to the input.

Tool Settings Tab

The Tool Settings tab provides options to define parameters that can be set at the time of execution. The following table describes the input and binding fields. Selecting multi value enables type binding options for adding prefixes to the input.

Tool Outputs Tab

The Tool Outputs tab provides options to define the parameters of output files.

The following table describes the input and binding fields. Selecting multi value enables type binding options for adding prefixes to the input.

Tool CWL Tab

The Tool CWL tab displays the complete CWL code constructed from the values entered in the other tabs. the CWL code automatically updates when changes are made in the tool definition tabs, and any changes to the CWL code are reflected in the tool definition tabs.

❗️ Modifying data within the CWL editor can result in invalid code.

Edit a Tool

1. From the System Settings > Tool Repository page, select a tool.

2. Select Edit.

Update Tool Status

1. From the System Settings > Tool Repository page, select a tool.

2. Select the Information tab.

3. From the Status drop-down menu, select a status.

4. Select Save.

Import Tool

In addition to the interactive Tool builder, the platform GUI also supports working directly with the raw definition when developing a new Tool. This provides the ability to write the Tool definition manually or bring an existing Tool's definition to the platform.

A simple example CWL Tool definition is provided below.

#!/usr/bin/env cwl-runner

cwlVersion: v1.0
class: CommandLineTool
label: echo
inputs:
  message:
    type: string
    default: testMessage
    inputBinding:
      position: 1
outputs:
  echoout:
    type: stdout
baseCommand:
- echo

When creating a new Tool, navigate to System Settings > Tool Repository > your_tool > Tool CWL tab to show the raw CWL definition. Here a CWL CommandLineTool definition may be pasted into the editor. After pasting into the editor, the definition is parsed and the other tabs for visually editing the Tool will populate according to the definition contents.

Creating Your First Tool - Tips and Tricks

• General Tool - includes your base command and various optional configurations.

  • The base command is required for your tool to run, e.g. python /path/to/script.py such that python and /path/to/script.py are added in separate lines.

  • Inline Javascript requirement - must be enabled if you are using Javascript anywhere in your tool definition.

  • Initial workdir requirement - Dirent Type

    • Your tool must point to a script that executes your analysis. That script can either be provided in your Docker image or using a Dirent. Defining a script via Dirent allows you to dynamically modify your script without updating your Docker image. In order to define your Dirent script define your script name under Entry name (e.g. runner.sh) and the script content under Entry. Then, point your base command to that custom script, e.g. bash runner.sh.

❗ What's the difference between Settings and Arguments?

Settings are exposed at the pipeline level with the ability to get modified at launch, while Arguments are intended to be immutable and hidden from users launching the pipeline.

• How to reference your tool inputs and settings throughout the tool definition?

  • You can either reference your inputs using their position or ID.

    • Settings can be referenced using their defined IDs, e.g. $(inputs.InputSetting)

    • File/Directory inputs can be referenced using their defined IDs, followed by the desired field, e.g. $(inputs.InputFile.path). For additional information please refer to the File CWL documentation.

    • All inputs can also be referenced using their position, e.g. bash script.sh $1 $2

This section describes how to connect an AWS S3 Bucket with SSE-KMS Encryption enabled. General instructions for configuring your AWS account to allow ICA to connect to an S3 bucket are found on this page.

Create an S3 bucket with SSE-KMS

Follow the AWS instructions for how to create S3 bucket with SSE-KMS key.

In the "Default encryption" section, enable Server-side encryption and choose AWS Key Management Service key (SSE-KMS). Then select Choose your AWS KMS key.

Connect the S3-SSE-KMS to ICA

Follow the general instructions for connecting an S3 bucket to ICA.

In the step "Create AWS IAM policy":

• Add permission to use KMS key by adding kms:Decrypt, kms:Encrypt, and kms:GenerateDataKey

• Add the ARN KMS key arn:aws:kms:xxx on the first "Resource"

• On Unversioned buckets, the permssions will match the following:

  Copy

  {
      "Version": "2012-10-17",
      "Statement": [
          {
              "Effect": "Allow",
              "Action": [
                  "kms:Decrypt",
                  "kms:Encrypt",
                  "kms:GenerateDataKey",
                  "s3:PutBucketNotification",
                  "s3:ListBucket",
                  "s3:GetBucketNotification",
                  "s3:GetBucketLocation"
              ],
              "Resource": [
                  "arn:aws:kms:xxx",
                  "arn:aws:s3:::BUCKET_NAME"
              ]
          },
          {
              "Effect": "Allow",
              "Action": [
                  "s3:PutObject",
                  "s3:GetObject",
                  "s3:RestoreObject",
                  "s3:DeleteObject"
              ],
              "Resource": "arn:aws:s3:::BUCKET_NAME/YOUR_FOLDER_NAME/*"
          },
          {
              "Effect": "Allow",
              "Action": [
                  "sts:GetFederationToken"
              ],
              "Resource": [
                  "*"
              ]
          }
      ]
  }

• On Versioned OR Suspended buckets, the permssions will match the following:

  Copy

  {
      "Version": "2012-10-17",
      "Statement": [
          {
              "Effect": "Allow",
              "Action": [
                  "kms:Decrypt",
                  "kms:Encrypt",
                  "kms:GenerateDataKey",
                  "s3:PutBucketNotification",
                  "s3:ListBucket",
                  "s3:GetBucketNotification",
                  "s3:GetBucketLocation",
                  "s3:ListBucketVersions",
                  "s3:GetBucketVersioning"
              ],
              "Resource": [
                  "arn:aws:kms:xxx",
                  "arn:aws:s3:::BUCKET_NAME"
              ]
          },
          {
              "Effect": "Allow",
              "Action": [
                  "s3:PutObject",
                  "s3:GetObject",
                  "s3:RestoreObject",
                  "s3:DeleteObject",
                  "s3:DeleteObjectVersion",
                  "s3:GetObjectVersion"
              ],
              "Resource": "arn:aws:s3:::BUCKET_NAME/YOUR_FOLDER_NAME/*"
          },
          {
              "Effect": "Allow",
              "Action": [
                  "sts:GetFederationToken"
              ],
              "Resource": [
                  "*"
              ]
          }
      ]
  }

At the end of the policy setting, there should be 3 permissions listed in the "Summary".

Create the S3-SSE-KMS configuration in ICA

Follow the general instructions for how to create a storage configuration in ICA.

On step 3 in process above, continue with the [Optional] Server Side Encryption to enter the algorithm and key name for server-side encryption processes.

• On "Algorithm", input aws:kms

• On "Key Name", input the ARN KMS key: arn:aws:kms:xxx

Additional set up for Cross Account Copy for S3 buckets with SSE-KMS encryption

In addition to following the instructions to Enable Cross Account Copy, the KMS policy must include the following statement for AWS S3 Bucket with SSE-KMS Encyption (refer to the Role ARN table from the linked page for the ASSUME_ROLE_ARN value):

    {
        "Sid": "Allow cross account access",
        "Effect": "Allow",
        "Principal": {
            "AWS": "ASSUME_ROLE_ARN"
        },
        "Action": [
            "kms:Encrypt",
            "kms:Decrypt",
            "kms:ReEncrypt*",
            "kms:GenerateDataKey*",
            "kms:DescribeKey"
        ],
        "Resource": "*"
    }

The Data section gives you access to the files and folders stored in the project as well as those linked to the project. Here, you can perform searches and data management operations such as moving, copying, deleting and (un)archiving.

Recommended Practices

File/Folder Naming

Data Formats

Data Privacy

Data Integrity

Data Management

Viewing Data

On the Projects > your_project > Data page, you can view file information and preview files.

To view file details click on the filename to see the file details.

• Run input tags identify the last 100 pipelines which used this file as input.

• Connector tags indicate if the file was added via browser upload or connector.

To view file contents, select the checkbox at the begining of the line and then select View from the top menu. Alternatively, you can first click on the filename to see the details and then click view to preview the file.

To see the ongoing actions (copying from, copying to, moving from, moving to) on data in the data overview (Projects > your_project > Data), add the ongoing actions column from the column list. This contains a list of ongoing actions sorted by when they were created. You can also consult the data detail view for ongoing actions by clicking on the data in the overview. When clicking on an ongoing action itself, the data job details of the most recent created data job are shown.

For folders, the list of ongoing actions is displayed on top left of the folder details. When clicking the list, the data job details are shown of the most recent created data job of all actions.

Secondary Data

When Secondary Data is added to a data record, those secondary data records are mounted in the same parent folder path as the primary data file when the primary data file is provided as an input to a pipeline. Secondary data is intended to work with the CWL secondaryFiles feature. This is commonly used with genomic data such as BAM files with companion BAM index files (refer to https://www.ncbi.nlm.nih.gov/tools/gbench/tutorial6/ for an example).

Hyperlinking to Data

To hyperlink to data, use the following syntax:

Uploading Data

Uploading data to the platform makes it available for consumption by analysis workflows and tools.

UI Upload

To upload data manually via the drag-and-drop interface in the platform UI, go to Projects > your_project > Data and either

• Drag a file from your system into the Choose a file or drag it here box.

• Select the Choose a file or drag it here box, and then choose a file. Select Open to upload the file.

Your files are added to the Data page with status partial during upload and become available when upload completes.

Upload Data via CLI

Copying Data

You can copy data from the same project to a different folder or from another project to which you have access.

In order to copy data, the following rights must be assigned to the person copying the data:

The following restrictions apply when copying data:

To use data copy:

1. Go to the destination project for your data copy and proceed to Projects > your_project > Data > Manage > Copy From.

2. Optionally, use the filters (Type, Name, Status, Format or additional filters) to filter out the data or search with the search box.

3. Select the data (individual files or folders with data) you want to copy.

4. Select any meta data which you want to keep with the copied data (user tags, technical system tags or instrument information).

5. Select which action to take if the data already exists (overwrite exsiting data, don't copy or keep both the original and the new copy by appending a number to the copied data).

6. Select Copy Data to copy the data to your project. You can see the progress in Projects > your_project > Activity > Batch Jobs and if your browser permits it, a pop-up message will be displayed whan the copy process completes.

The outcome can be

• INITIALIZED

• WAITING_FOR_RESOURCES

• RUNNING

• STOPPED - When choosing to stop the batch job.

• SUCCEEDED - All files and folders are copied.

• PARTIALLY_SUCCEEDED - Some files and folders could be copied, but not all. Partially succeeded will typically occur when files were being modified or unavailable while the copy process was running.

• FAILED - None of the files and folders could be copied.

To see the ongoing actions on data in the data overview (Projects > your_project > Data), you can add the ongoing actions column from the column list with the three column symbol at the top right, next to the filter funnel. You can also consult the data detail view for ongoing actions by clicking on the data in the overview.

There is a difference in copy type behavior between copying files and folders. The behavior is designed for files and it is best practice to not copy folders if there already is a folder with the same name in the destination location.

Move Data

You can move data both within a project and between different projects to which you have access. If you allow notifications from your browser, a pop-up will appear when the move is completed.

• Move From is used when you are in the destination location.

• Move To is used when you are in the source location. Before moving the data, pre-checks are performed to verify that the data can be moved and no currently running operations are being performed on the folder. Conflicting jobs and missing permissions will be reported. Once the move has started, no other operation should be performed on the data being moved to avoid potential data loss or duplication. Adding or (un)archiving files during the move may result in duplicate folders and files with different identifiers. If this happens, you will need to manually delete the duplicate files and move the files which were skipped during the initial move.

There are a number of rights and restrictions related to data move as this will delete the data in the source location.

Move Data From

Move Data From is used when you are in the destination location.

1. Navigate to Projects > your_project > Data > your_destination_location > Manage > Move From.

2. Select the files and folders which you want to move.

3. Select the Move button. Moving large amounts of data can take considerable time. You can monitor the progress at Projects > your_project > Activity > Batch Jobs.

Move Data To

Move Data To is used when you are in the source location. You will need to select the data you want to move from to current location and the destination to move it to.

1. Navigate to Projects > your_project > Data > your_source_location.

2. Select the files and folders which you want to move.

3. Select to Projects > your_project > Data > your_source_location > Manage > Move To.

4. Select your target project and location.
5. Select the Move button. Moving large amounts of data can take considerable time. You can monitor the progress at Projects > your_project > Activity > Batch Jobs.

Move Status

• INITIALIZED

• WAITING_FOR_RESOURCES

• RUNNING

• STOPPED - When choosing to stop the batch job.

• SUCCEEDED - All files and folders are moved.

• PARTIALLY_SUCCEEDED - Some files and folders could be moved, but not all. Partially succeeded will typically occur when files were being modified or unavailable while the move process was running.

• FAILED - None of the files and folders could be moved.

To see the ongoing actions on data in the data overview (Projects > your_project > Data), you can add the ongoing actions column from the column list with the three column symbol at the top right, next to the filter funnel. You can also consult the data detail view for ongoing actions by clicking on the data in the overview.

Download Data

Single files can be downloaded directly from within the UI.

• Select the checkbox next to the file which you want to download, followed by Download > Download file.

• Files for which ICA can display the contents can be viewed by clicking on the filename, followed by the View tab. Select the download action on the view tab to download the file. Note that larger files may take some time to load.

Schedule for Download

You can trigger an asynchronous download via service connector using the Schedule for Download button with one or more files selected.

1. Select a file or files to download.

2. Select Download > Download files or folders using a service connector. This will display a list of all available connectors.

3. Select a connector, and then select Schedule for Download. If you do not find the connector you need or you do not have a connector, you can click the Don't have a connector yet? option to create a new connector. You must then install this new connector and return to the file selection in step 1 to use it.

You can view the progress of the download or stop the download on the Activity page for the project.

Export Project Data Information

The data records contained in a project can be exported in CSV, JSON, and excel format.

1. Select one or more files to export.

2. Select Export.

3. Select the following export options:

   • To export only the selected file, select the Selected rows as the Rows to export option. To export all files on the page, select Current page.

   • To export only the columns present for the file, select the Visible columns as the Columns to export option.

4. Select the export format.

Archiving and Deleting files

To manually archive or delete files, do as follows:

1. Select the checkbox next to the file or files to delete or archive.

2. Select Manage, and then select one of the following options:

   • Archive — Move the file or files to long-term storage (event code ICA_DATA_110).

   • Unarchive — Return the file or files from long-term storage. Unarchiving can take up to 48 hours, regardless of file size. Unarchived files can be used in analysis (event code ICA_DATA_114).

   • Delete — Remove the file completely (event code ICA_DATA_106).

When attempting concurrent archiving or unarchiving of the same file, a message will inform you to wait for the currently running (un)archiving to finish first.

To archive or delete files programmatically, you can use ICA's API endpoints:

2. Modify the dates of the file to be deleted/archived.

Link Project Data

Linking a folder creates a dynamic read-only view of the source data. You can use this to get access to data without running the risk of modifying the source material and to share data between projects. In addition, linking ensures changes to the source data are immediately visible and no additional storage is required.

You can recognise linked data by the green color and see the owning project as part of the details.

Since this is read-only access, you cannot perform actions on linked data that need to write access. Actions like (un)archiving, linking, creating, deleting, adding or moving data and folders, and copying data into the linked data are not possible.

You can perform analysis on data from other projects by linking data from that project.

1. Select Projects > your_project > Data > Manage, and then select Link.

2. To view data by project, select the funnel symbol, and then select Owning Project. If you only know which project the data is linked to, you can choose to filter on linked projects.

3. Select the checkbox next to the file or files to add.

4. Select Select Data.

Your files are added to the Data page. To view the linked data file, select Add filter, and then select Links.

Linking Folders

If you link a folder instead of individual files, a warning is displayed indicating that, depending on the size of the folder, linking may take considerable time. The linking process will run in the background and the progress can be monitored on the Projects > your_project > activity > Batch Jobs screen.

To see more details, double-click the batch job.

To see how many individual files are already linked, double-click the item.

Unlinking Project Data

To unlink the data, go to the root level of your project and select the linked folder or if you have linked individual files separately, then you can select those linked files (limited to 100 at a time) and select Manage > Unlink. As during linking a folder, when unlinking, the progress can be monitored at Projects > your_project > activity > Batch Jobs.

Non-indexed Folders

The GUI considers non-indexed folders as a single object. You can access the contents from a non-indexed folder

• as Analysis input/output

• in Bench

• via the API

To use a reference set from within a project, you have first to add it. From the project's page select Flow > Reference Data > Manage > +Add to project. Then select a reference set to add to your project. You can select the entire reference set, or click the arrow next to it to expand it. After expanding, scroll to the right, to see the individual reference files in the set. You can select individual reference files to add to your project, by checking the boxes next to them.

Note: Reference sets are only supported in Graphical CWL pipelines.

Copying Reference Data to other Regions

1. Navigate to Reference Data (outside of Project context).

2. Select the data set(s) you wish to add to another region and select Actions > Copy to another project.

3. Select a project located in the region where you want to add your reference data.

4. You can check in which region(s) Reference data is present by double-clicking on individual files in the Reference set and viewing Copy Details on the Data details tab.

5. Allow a few minutes for new copies to become available before use.

Note: You only need one copy of each reference data set per region. Adding Reference Data sets to additional projects set in the same region does not result in extra copies, but creates links instead. This is done from inside the project at Projects > <your_project> > Flow > Reference Data > Manage > Add to project.

Creating a Pipeline with Reference Data

To create a pipeline with a reference data use the CWL - graphical mode (important restriction: as of now you cannot use reference data for pipelines created in advanced mode). Use the reference data icon instead of regular input icon. On the right hand side use the Reference files submenu to specify the name, the format, and the filters. You can specify the options for an end-user to choose from and a default selection. You can select more than 1 file, but you can only select 1 at a time (so, repeat process to select multiple reference files). If you only select 1 reference file, that file will be the only one users can use with your pipeline. In the screenshot a reference data with two options is presented.

If your pipeline was built to give users the option of choosing among multiple input reference files, they will see the option to select among the reference files you configured, under Settings.

After clicking the magnifying glass icon the user can select from provided options.

Pipelines defined using the "Code" mode require either an XML-based or JSON-based input form to define the fields shown on the launch view in the user interface (UI). The XML-based input form is defined in the "XML Configuration" tab of the pipeline editing view.

The input form XML must adhere to the input form schema.

Empty Form

During the creation of a Nextflow pipeline the user is given an empty form to fill out.

Files

The input files are specified within a single DataInputs node. An individual input is then specified in a separate DataInput node. A DataInput node contains following attributes:

• code: an unique id. Required.

• format: specifying the format of the input: FASTA, TXT, JSON, UNKNOWN, etc. Multiple entries are possible: example below. Required.

• type: is it a FILE or a DIRECTORY? Multiple entries are not allowed. Required.

• required: is this input required for the execution of a pipeline? Required.

• multiValue: are multiple files as an input allowed? Required.

• dataFilter: TBD. Optional.

Additionally, DataInput has two elements: label for labelling the input and description for a free text description of the input.

Single file input

An example of a single file input which can be in a TXT, CSV, or FASTA format.

Folder as an input

To use a folder as an input the following form is required:

Multiple files as an input

For multiple files, set the attribute multiValue to true. This will make it so the variable is considered to be of type list [], so adapt your pipeline when changing from single value to multiValue.

Settings

Settings (as opposed to files) are specified within the steps node. Settings represent any non-file input to the workflow, including but not limited to, strings, booleans, integers, etc. The following hierarchy of nodes must be followed: steps > step > tool > parameter. The parameter node must contain following attributes:

• code: unique id. This is the parameter name that is passed to the workflow

• minValues: how many values (at least) should be specified for this setting. If this setting is required, minValues should be set to 1.

• maxValues: how many values (at most) should be specified for this setting

• classification: is this setting specified by the user?

In the code below a string setting with the identifier inp1 is specified.

Examples of the following types of settings are shown in the subsequent sections. Within each type, the value tag can be used to denote a default value in the UI, or can be left blank to have no default. Note that setting a default value has no impact on analyses launched via the API.

Integers

For an integer setting the following schema with an element integerType is to be used. To define an allowed range use the attributes minimumValue and maximumValue.

Options

Options types can be used to designate options from a drop-down list in the UI. The selected option will be passed to the workflow as a string. This currently has no impact when launching from the API, however.

Option types can also be used to specify a boolean, for example

Strings

For a string setting the following schema with an element stringType is to be used.

Booleans

For a boolean setting, booleanType can be used.

Limitations

One known limitation of the schema presented above is the inability to specify a parameter that can be multiple type, e.g. File or String. One way to implement this requirement would be to define two optional parameters: one for File input and the second for String input. At the moment ICA UI doesn't validate whether at least one of these parameters is populated - this check can be done within the pipeline itself.

Below one can find both a main.nf and XML configuration of a generic pipeline with two optional inputs. One can use it as a template to address similar issues. If the file parameter is set, it will be used. If the str parameter is set but file is not, the str parameter will be used. If neither of both is used, the pipeline aborts with an informative error message.

In order to run Nextflow pipelines, the following process-level attributes within the Nextflow definition must be considered.

System Information

(*) Pipelines will still run when 20.10.0 will be deprecated, but you will no longer be able to choose it when creating new pipelines.

Nextflow Version

You can select the Nextflow version while building a pipeline as follows:

Compute Node

For each compute type, you can choose between the scheduler.illumina.com/lifecycle: standard (default - AWS on-demand) or scheduler.illumina.com/lifecycle: economy (AWS spot instance) tiers.

Compute Type

Inputs

Outputs

Nextflow Configuration

Syntax highlighting is determined by the file type, but you can select alternative syntax highlighting with the drop-down selection list.

The following configuration settings will be ignored if provided as they are overridden by the system:

Compute Type

To specify a compute type for a CWL CommandLineTool, use the ResourceRequirement with a custom namespace.

For example, take the following ResourceRequirements:

This would result in a best fit of standard-large ICA Compute Type request for the tool.

• If the specified requirements can not be met by any of the presets, the task will be rejected and failed.

• FPGA requirements can not be set by means of CWL ResourceRequirements.

• The Machine Profile Resource in the graphical editor will override whatever is set for requirements in the ResourceRequirement.

Considerations

If no Docker image is specified, Ubuntu will be used as default. Both : and / can be used as separator.

CWL Overrides

In ICA you can provide the "override" recipes as a part of the input JSON. The following example uses CWL overrides to change the environment variable requirement at load time.

Select Projects > your_project > Flow > Pipelines. From the Pipelines view, click the +Create > Nextflow > JSON based button to start creating a Nextflow pipeline.

In the Details tab, add values for the required Code (unique pipeline name) and Description fields. Nextflow Version and Storage size defaults to preassigned values.

Nextflow files

split.nf

First, we present the individual processes. Select Nextflow files > + Create and label the file split.nf. Copy and paste the following definition.

sort.nf

Next, select +Create and name the file sort.nf. Copy and paste the following definition.

merge.nf

Select +Create again and label the file merge.nf. Copy and paste the following definition.

main.nf

Edit the main.nf file by navigating to the Nextflow files > main.nf tab and copying and pasting the following definition.

Here, the operators flatten and collect are used to transform the emitting channels. The Flatten operator transforms a channel in such a way that every item of type Collection or Array is flattened so that each single entry is emitted separately by the resulting channel. The collect operator collects all the items emitted by a channel to a List and return the resulting object as a sole emission.

Inputform files

On the Inputform files tab, edit the inputForm.json to allow selection of a file.

inputForm.json

Click the Simulate button (at the bottom of the text editor) to preview the launch form fields.

The onSubmit.js and onRender.js can remain with their default scripts and are just shown here for reference.

onSubmit.js

onRender.js

Click the Save button to save the changes.
